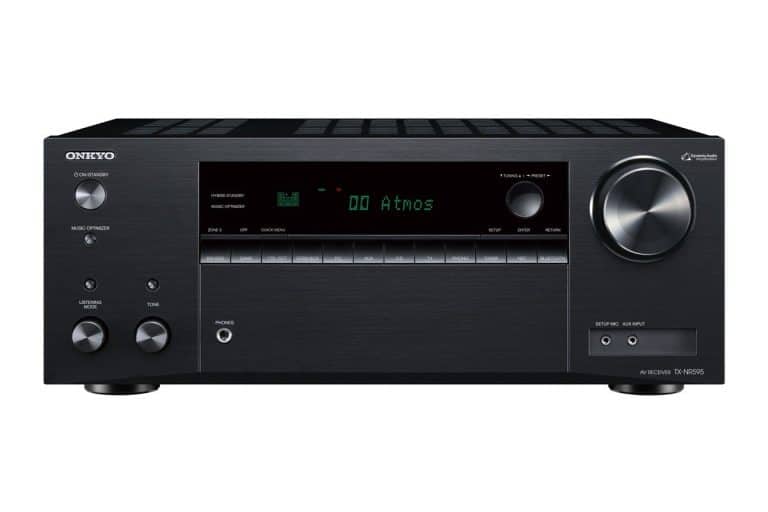

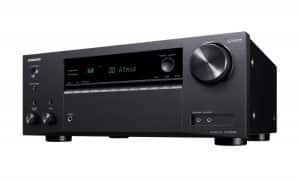

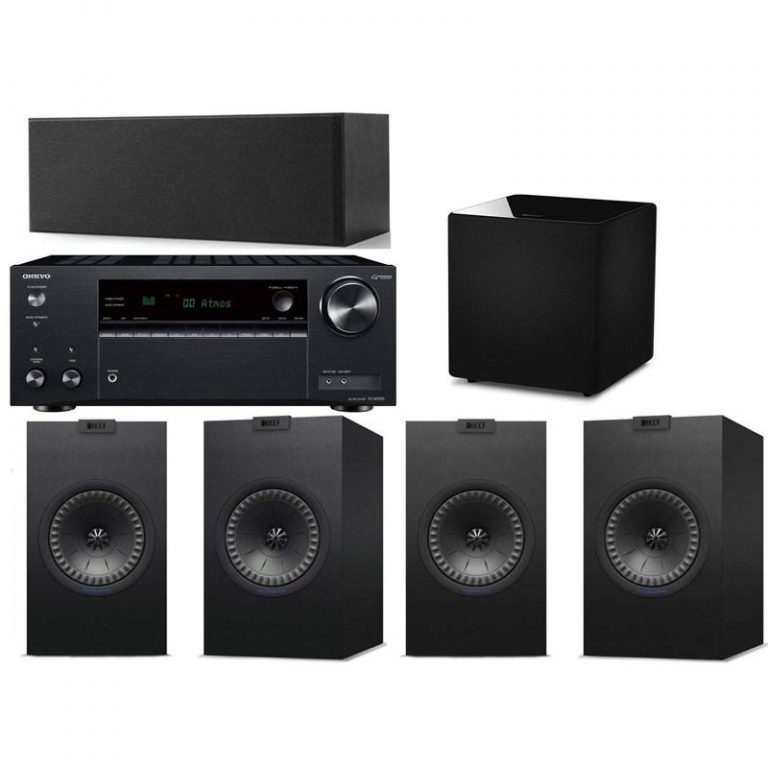

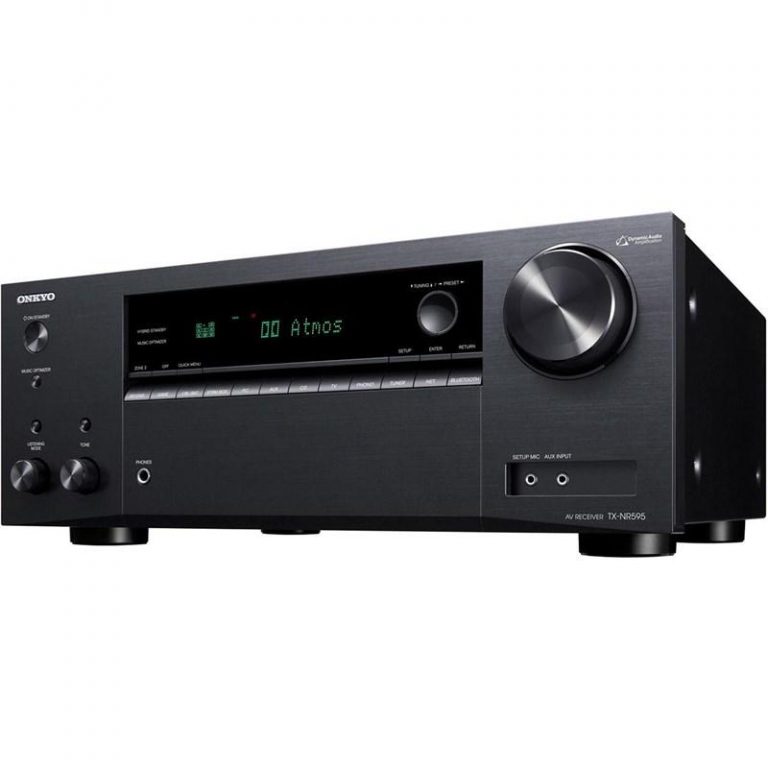

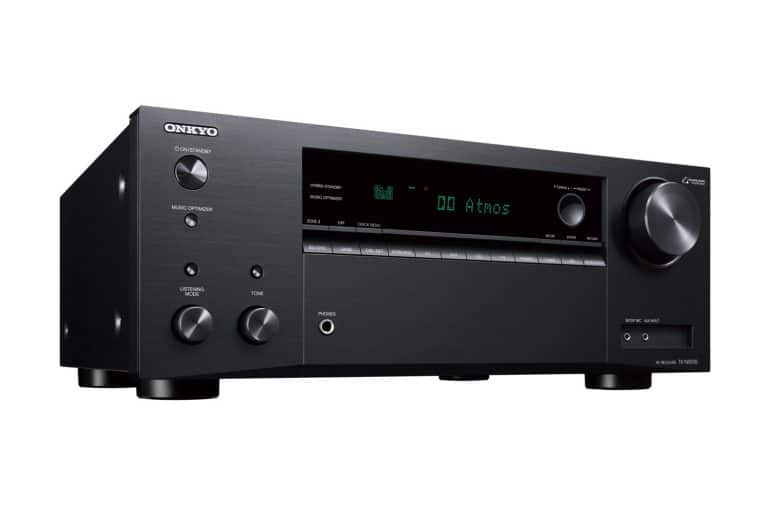

Onkyo / Kef Home Theater 5.1 Package

Width 17.1 inch(es) / 43.43 cm

Height 6.8 inch(es) / 17.27 cm

Depth 14.9 inch(es) / 37.85 cm

Weight 20.7 lb(s) / 9.39 kg

Sound Channels 7.2

Output Power • 8 Ohms 20-20kHz, 2 Channels Driven, FTC: 80 Watts, 0.08% THD • 6 Ohms 1kHz, 1 Channel Driven: 170 Watts, 10% THD

Total Harmonic Distortion 0.08 %

Frequency Range (Hz) 20 Hz - 20,000 Hz

Video Compatibility 4K

Atmos Compatible 1

DTS System 1

Number of Zones 2

Bluetooth Built-in

AM/FM 1

Phonograph Input 1

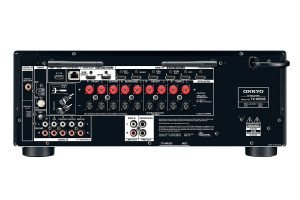

HDMI Input(s) 6

HDMI Output(s) 2

Composite Audio Input(s) (Analog) 4

Digital Optical Inputs 1

Coaxial Digital Input(s) 1

Headphone Output 1

Network Socket 1

RS-232 No

USB 1

Wi-Fi 1

Width 18.4 inch(es) / 46.74 cm

Height 10.2 inch(es) / 25.91 cm

Depth 20.9 inch(es) / 53.09 cm

Weight 24.74 lb(s) / 11.22 kg

UPC 889951001683

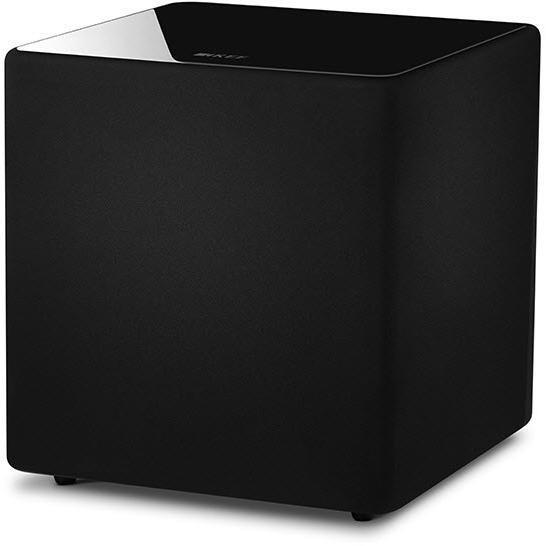

Width 11.5 inch(es) / 29.21 cm

Height 11.5 inch(es) / 29.21 cm

Depth 12.2 inch(es) / 30.99 cm

Weight 11.3 kg / 24.91 lbs (each)

Speaker Type Indoor

Color(s) Black

Number of Drivers 1

Frequency Response 34 Hz - 140 Hz

Low Frequency Drivers 8"

Power Amplifier(s) 300 W

Stereo 1

UPC 637203215223

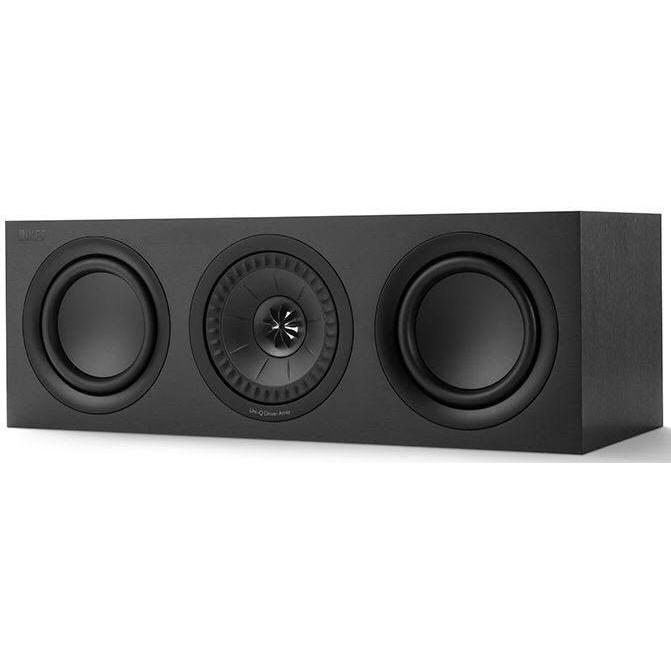

Width 20.66 inch(es) / 52.48 cm

Height 7.08 inch(es) / 17.98 cm

Depth 8.42 inch(es) / 21.39 cm

Weight 7.48 kg / 16.49 lbs (each)

Speaker Type Indoor

Color(s) Black

Number of Drivers 4

Frequency Response 68 Hz - 28,000 Hz

Sensitivity 87 dB

Amplifier Recommended Range 10 watts - 100 watts

Impedance 8 ohms

High Frequency Drivers 25mm (1in.) vented aluminium dome HF

Midrange Driver(s) 2 x 130mm (5.25in.) aluminium ABR

Low Frequency Drivers 130mm (5.25in.)

Crossover Information 2,500 Hz

UPC 637203217777

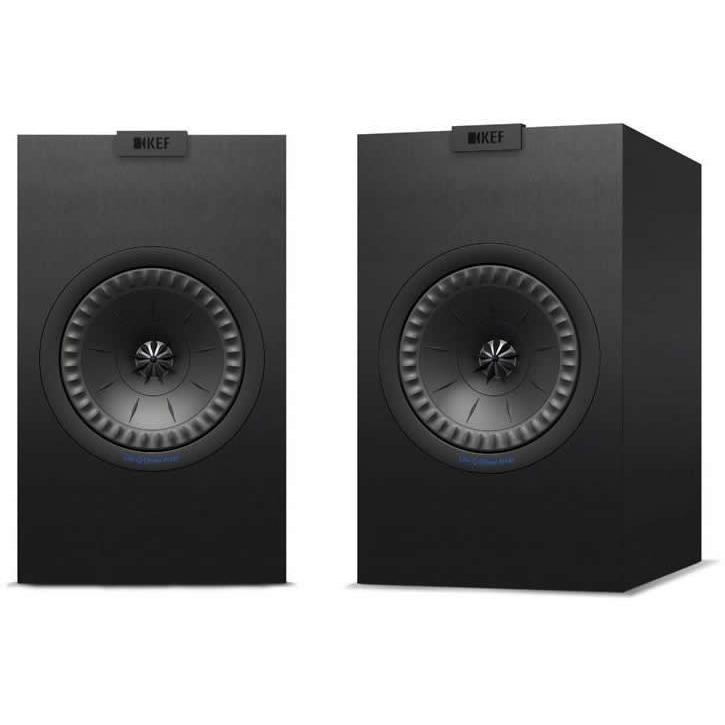

Width 7.09 inch(es) / 18 cm

Height 12.09 inch(es) / 30.7 cm

Depth 10.94 inch(es) / 27.8 cm

Weight 5.6 kg / 12.35 lbs (each)

Speaker Type Indoor

Color(s) Black

Number of Drivers 2

Frequency Response 51 Hz-28,000 Hz (+- 3dB)

Sensitivity 86 dB

Amplifier Recommended Range 10 watts - 100 watts

Impedance 8 ohms

Additional Feature(s) • Uni-Q driver array • The Uni-Q driver is repositioned to the center of the cabinet to reduce unwanted internal resonance and adding refinement to sonic clarity and detail • Clarity is improved by reducing the audibility of the midrange leakage through the port

High Frequency Drivers 25mm (1in.)vented aluminium dome HF

Midrange Driver(s) 130mm (5.25in.) aluminium Uni-Q

UPC 637203215681
