The Integrated Amplifier

The PA 3100 HV is a further development of the PA 3000 HV, and most of its sub-assemblies are identical. The immediately obvious difference is the pair of VU meters in the front panel, which display the power generated per channel in logarithmic form in Watts into 4 Ohms. A revision of the pre-amplifier section (D.C. coupling) has brought an additional improvement in sound quality.

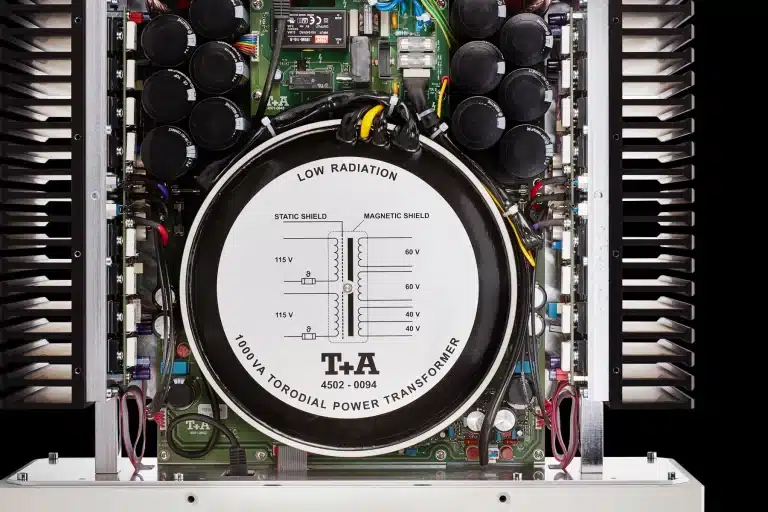

A further development is the redesigned analogue mains section and voltage power supply, which is similar to that of the A 3000 HV. This makes it possible to connect the supplementary PS 3000 HV mains section in order to gain a further increase in stability and performance of the power supply system as a whole. The additional unit provides an extra 1800 Watt of supply power, enabling the system to control even the most difficult loudspeakers without effort, so that they can unfold the best possible sound quality.

As an option the PA 3000 HV and PA 3100 HV can also be fitted with High-End phono pre-amplifier modules which feature different circuit topologies to suit MM or MC systems. It is also possible to install the analogue signal processor module which has been developed for the P 3000 HV to provide channel-separate tone and loudness functions.
The all-metal F3001 infra-red remote control handset is supplied as standard.

Circuit Topology

As with the P 3000 HV, the circuit topology is based on a differential cascode amplifier with individually selected audio J-FET transistors, and stages of completely discrete construction without op-amps (operational amplifiers). Virtually no overall negative feedback is required due to this circuit arrangement and the quality of the components employed. The high operating voltage of HV technology is the key to excellent linearity combined with extremely wide dynamic range: signals up to 60 Vss can be processed without distortion.
In the HV series the signal switching and adjusting functions are carried out by encapsulated gas-tight gold-contact relays, which are totally immune to contact problems due to corrosion, dust, etc., and do not suffer from ageing effects even after many years of operation. The pre-amplifier even employs bi-stable relays, which require no permanent coil current, and this in turn eliminates any adverse inductive effect on the audio signals.
The direct integration of the relays into the circuit minimises the signal paths, and connecting cables – as required for conventional volume potentiometers – are no longer necessary. The volume control is assembled from discrete precision resistors and gold-contact relays. The result is totally precise channel matching, devoid of distortion and hiss.

Control Circuitry

DIMENSIONS

Height : 17 cm / 6.69 inches

Width : 46 cm / 18.11 inches

Depth : 46 cm / 18.11 inches

Weight : 38 kg / 83.78 lbs

GENERAL

Material : Case: titanium laquer 64 Heat sink: black 42

Power Consumption : 110 V/60 Hz or 220/240 V/50 Hz

Standby Power Consumption : < 0,5 W

Remote Control : F 3001

Features : Trigger input +5 ... 20V for external switching-on Input 4 can be configured in surround mode (Surround pass-through) connectivity for additional PS 3000 HV LAN connector for home-automation systems

Optional Accessories : PS 3000 HV Power Supply | PH HV MM oder MC phono module | APM signal processor module | Power Three HD (Carbon) | Power Bar | Audio Quad (Carbon) | Speaker Hex (Carbon) HV-Individual finish (Individual colours on request)| IP control.

OUTPUTS

Headphones : 50 Ohms

Recorder : 250 mVeff / 100 Ohms

Preout : RCA : nom 1 Veff, max 9,5 Veff / 50 Ohms XLR : nom 1,45 Veff, max 19,6 Veff / 50 Ohms

Power Bandwith : 1 Hz – 150 kHz

Frequency Response : Frequency response + 0 / – 3 dB : 0,5 Hz – 180 kHz

Slew Rate : 60 V/µs

Damping Factor : > 65

Signal to noise ratio : > 115 dB

Total Harmonic Distortion : < 0,03 %

Reservoir Capacity : 120000 µF

Additional Feature(s) : • RMS output per channel into 8 Ohms : 300 Watts • RMS output per channel into 4 Ohms : 500 Watts • Peak output into 8 Ohms : 380 Watts • Peak output into 4 Ohms : 700 Watts

PRE-AMPLIFIER

Frequency Response : Frequency response + 0 / – 3 dB : 0,5 Hz –300 kHz

Signal to noise ratio : 105 / 110 dB

Total Harmonic Distortion : < 0,001%

Intermodulation : < 0,001 %

Channel Separation : > 90 dB

RCA Input(s) : 7 x 250 mVeff ... 6 Veff / 20 kOhms

XLR Inputs : 4 x 500 mVeff ... 12 Veff / 5 kOhms
