Signature Preamplifier

The fundamental qualities that made the original TL-5.5 special—its all-tube design, the optional retrofittable phono stage, and its superb sonic characteristics—are unchanged. What’s new is the application of advanced audio technology sourced from VTL’s TL-7.5 Reference and TL-6.5 Signature preamplifiers. This technology uses a simple circuit topology with low negative feedback and a high current/low impedance output stage in a low-noise microprocessor-based design. Top quality parts, fully balanced operation, and precision-regulated and shielded power supplies yield a full yet neutral sound with high resolution, transparency, speed and powerful dynamics.

Much of the engineering prowess inherent in these world-class preamps has been transferred to the new TL5.5. New fully regulated power supplies are similar to those of its bigger siblings and the unit is now fully balanced, for inputs as well as outputs. Similarly, VTL’s latest thinking from our new and acclaimed TP-6.5 Signature phono stage is now applied to the optional MC phono stage, which can be easily retrofitted internally. It offers 68dB of gain and a balanced output, with a JFET/12AU7 high current MC stage (or high-grade stepup transformer), split-pole passive RIAA stage with a dual 12AX7 MM stage for maximum headroom voltage swing. Triple-precision power supply regulation and full gain and load setting with RIAA enhanced and rumble cut functions translate to a clean and quiet yet dynamic sound that brings vinyl to life!

VTL has delivered on its goal of bringing advanced engineering and modern functionality to the new TL-5.5 Series II preamplifier. With the same highly intuitive user interface of the renowned TL-7.5 and 6.5, and a full-function remote, the new TL-5.5 is a pleasure to use. A rigid, well-shielded chassis yields quiet operation while bi-directional RS-232 serial interface allows for seamless integration into any audio system. A luxurious cosmetic makeover includes a sleek and visually striking precision-milled faceplate similar to those used on its much more expensive brethren. For a well-priced, high-performance all-tube preamplifier, the TL-5.5 is a truly fine addition to any system.

Features

Line stage :

All-tube, with lower gain high current 12AU7 circuit and 12AT7 buffer, minimal negative feedback

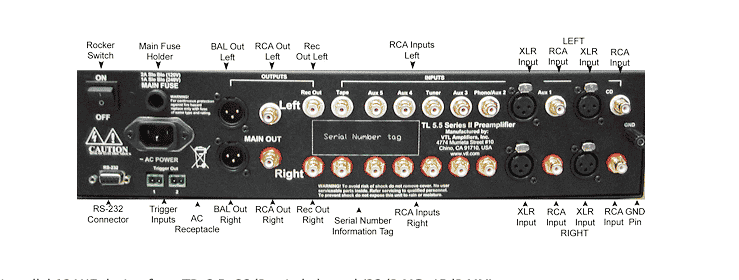

Two balanced /single-ended inputs, five single-ended inputs, one tape in, one balanced out, one single-ended out, one buffered record out
Soft-touch relay input select
117-step chip-based differential volume control, with 3-digit display
Higher resolution via single higher-resolution attenuator, and software control for balance and offset
Switchable gain between normal and low gain
Mono control on front panel
Fully bi-directional RS-232 control: programmable input offset, any input programmable as pass-through, and input disable, tape monitor and Mono control on front panel
Two programmable trigger outputs
Full function aluminum metal remote
TP-6.5 chassis size with all precision machined aluminum cosmetic

Phono stage :

JFET/parallel 12AU7 design from TP-6.5: 66dB gain balanced (23dB MC, 45dB MM)

Split-pole Passive RIAA with paralleled 12AX7 and 12AT7 gain stage
MM / MC select via jumper
MM Gain setting: fixed at 40 dB
MC Gain settings via jumper: 3 steps of 6dB: 66dB, 60dB, 54dB
Loading: MM 47k, MC: 100 ohm, 220 ohm, 470 ohm, 1K ohm, 47K ohm
Enhanced RIAA (selectable via jumper)
Rumble filter setting via front panel
Selectable bal/ S/E output via jumper
Dual-use buttons on front panel for phono-only functions
MC and MM gain trims

DIMENSIONS

Width : 17.5 inches / 44.45 cm

Depth : 17.5 inches / 44.45 cm

Height : 4.75 inches / 12.06 cm

Weight : 30 lbs / 13.6 kg

LINE STAGE

Vacuum Tube Complement : 2 x 12AU7, 4 x 12AT7

Input(s) : 2 pair balanced/XLR or RCA single-ended, 6 pairs single-ended/RCA

Output(s) : 1 pair balanced out, 1 pair single-ended RCA out, 1 pair single-ended RCA buffered Record Out

Remote Control : Power, Source Select, Volume up/down, Mute, Fade, Balance Control, Phase Reverse

Gain : Normal Gain -11dB single ended, 17dB balanced; Switchable to Low Gain – 6dB SE, 11dB balanced

Input Impedance(s) : 35kΩ

Output Impedance(s) : 150Ω, Max 400Ω @ 10Hz

Frequency Response : 1Hz – 200kHz, +0 -1dB

Maximum Output : 30V @ 10Hz – 200kHz, 1.75V into 600 ohms @ 1%THD

Channel Separation : >100dB @ 1kHz (>80dB @ 20kHz)

Power Consumption : 60W line stage, 130W with phono stage

PHONO STAGE

Vacuum Tube Complement : ◊ MM : 2 x 12AX7, 2 x 12AT7 ◊ MC : 2 x 12AT7, 2 x 12AX7, 2 x 12AU7

Gain : ◊ MM : 40dB ◊ MC : Selectable 54dB, 60dB, 66dB

Load Impedance : ◊ MM : 45kΩ ◊ MC : Selectable 100Ω, 220Ω, 470Ω, 1kΩ, 47kΩ

Signal to noise ratio : ◊ MM : 80dB ◊ MC (active) : 170dB ◊ MC Step Up Transformer : 75dB

SHIPPING DIMENSIONS

Weight : 40 lbs / 18.12 kg
