Signature Preamplifier

The TL-6.5 Series II incorporates most of the advanced technology found in VTL’s flagship preamplifier, the TL-7.5 Series III, for a dramatically higher level of performance compared to the original design. The new version features an extensively revised power supply based on current-sourced shunt regulator technology that minimizes impact on the audio signal. Far more precise power regulation yields dramatically improved rejection of noise and AC fluctuation.

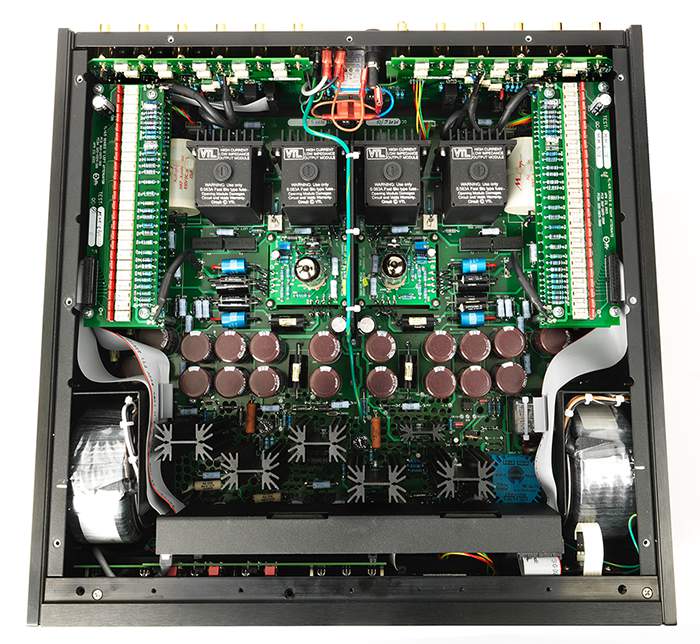

The completely redesigned high current gain stage utilizes newly available FET technology developed for green technologies such as solar panels and electric cars that require a normally-on state. Unlike MOSFETs that need to be biased on, normally-on devices operate more like vacuum tubes in the audio output stage, with simpler circuits that continuously conduct current, resulting in a more tube-like sound. The high-current gain stage is shock-mounted like the TL-7.5, and has been further optimized for linearity, with zero global negative feedback.

Also included in the upgrade are re-voiced audiophile grade capacitors and additional bypassing.

Enhancements to the Series II result in an overall more tube-like sonic character, with more defined images in the listening space, a higher level of inner detail, and a dramatically improved mid-bass and midrange. The TL6.5 Series II is an exceptional match with any of VTL’s other Signature products.

Features

Audio circuit features :

Fully balanced differential circuit with balanced in and out, and mirror-image layout
Simple 2-stage circuit topology with differential gain stage and output buffers for musical purity and integrity
Ultra low impedance output stage to drive any length of cable and any power amplifier/paralleled amplifier/subwoofer load
20 microfarad output capacitors for powerful bass control
Tube complement: 2 x 12AU7/ECC82 tubes
Gain switching between normal gain and low gain with 6dB gain reduction
Single fully balanced differential 95-step 70dB discrete resistor relay attenuator for all attenuation functions.

Control and power supply features :

Precision regulation
Ramped B+ filament soft-start power up for extended tube life
Huge energy storage power supply for elimination of AC fluctuation and noise rejection
Low noise processor control design for all functions.

User interface features :

Processor loop – any of 8 inputs can be assigned as fixed unity gain pass through
Tape monitor function for both tape loops
2 separately programmable trigger outputs
Bi-directional RS-232 interface
Programmable input offsets
Rigid Combination steel and non-magnetic chassis and machined aluminum remote wand.

Additional features :

New FET device output stage for more tube-like sound and simpler bias circuit
Improved current source for improved musicality and better single-ended operation
Zero Global NFB for vastly improved faster dynamic and tonal resolution, and unconditionally stable circuit, without any phase shift.
All audiophile grade capacitors in signal path with bypass system for improved HF resolution
Vastly improved lower impact and greater precision-regulated current-sourced shunt power supply
Teflon power supply bypass caps for improved top end
Microphonically damped tube gain stage for greater vibration noise elimination

DIMENSIONS

Width : 17.5 inches / 44.45 cm

Depth : 17.5 inches / 44.45 cm

Height : 6 inches / 15.3 cm

Weight : 46 lbs / 20.86 kg

SHIPPING DIMENSIONS

Weight : 57 lbs / 25.85 kg

SYSTEM

Vacuum Tube Complement : 2 x 12AU7

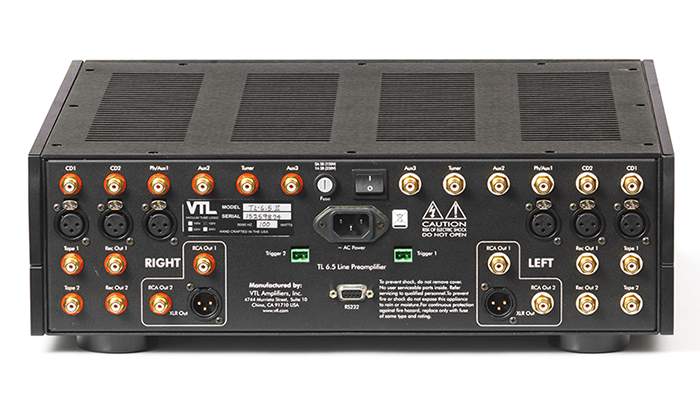

Input(s) : 3 pairs balanced/XLR or RCA single-ended, 5 pairs single-ended/RCA

Output(s) : 1 pair balanced out, 2 pairs single-ended RCA out, 2 pairs single-ended RCA buffered Tape Out

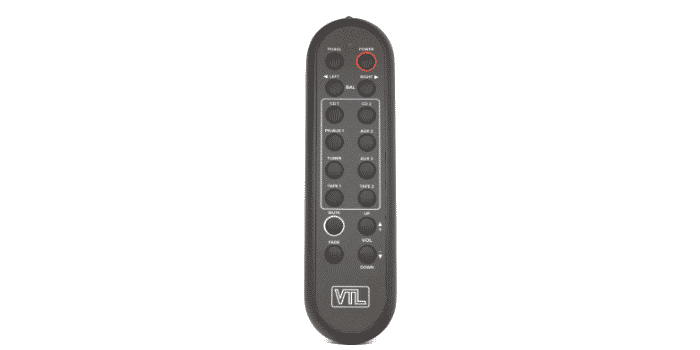

Remote Control : Power, Source Select, Volume up/down, Mute, Fade, Balance Control, Phase Reverse

Gain : ◊ NORM : 14 dB single ended, 19.2 dB balanced ◊ LOW : 7 dB single ended, 13 dB balanced

Input Impedance(s) : ◊ Balanced: 112kΩ (36kΩ min) ◊ Single ended: 54kΩ (18kΩ min)

Output Impedance(s) : 50Ω (500Ω @ 20Hz)

Frequency Response : 10Hz – 200kHz, into 5kΩ 1000pF load (+0, -o.3 dB)

Maximum Output : 13V 10Hz – 200kHz into >5kΩ load @ 1%THD

Channel Separation : >100dB @ 1kHz (>80dB @ 20kHz)

Power Consumption : 150W
