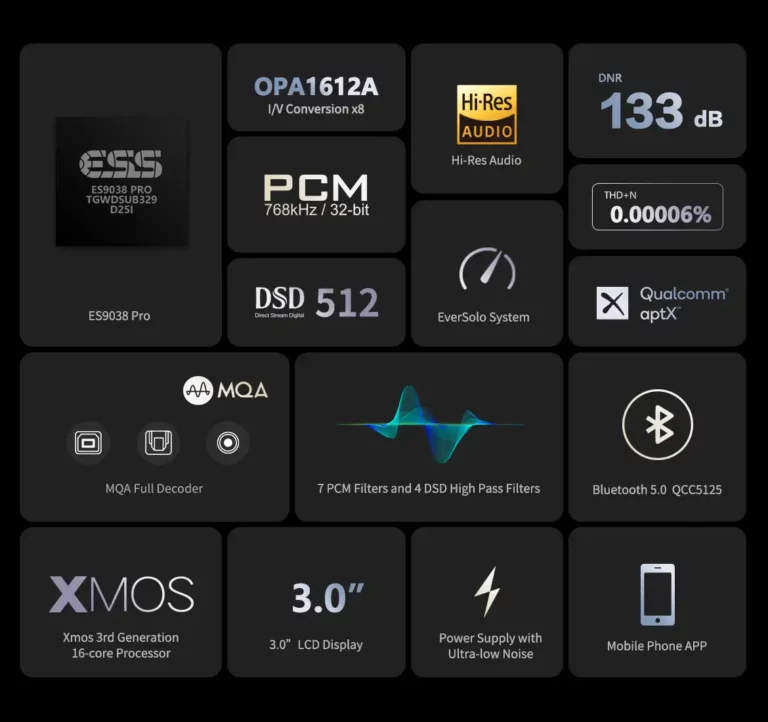

EverSolo DAC-Z8: Functional overview

ESS Sabre flagship ES9038Pro 32 bits D\A converter chip.

The 3rd generation XMOS XU316 with higher performance and faster speed.

High precision, low jitter dual clock oscillators synchronous processing.

OPA1612*8 I/V operational amplifier circuit, 8-channel shunt compensation technology.

Up to DSD512 Native, PCM768KHz@32Bit decoding.

Optical, Coaxial and USB support MQA full decoding and rendering.

Qualcomm QCC5125 Bluetooth 5.0 module supports APTX HD/LDAC protocol.

Fully balanced audio architecture, differential amplifier circuit and professional calibration.

High-performance headphone amp output, 16-300 ohm headphone driver.

3-inch LCD screen, with diverse VU meter modes.

Low ripple power supply to ensure a purer power source.

Exclusive mobile phone controller APP for global control.

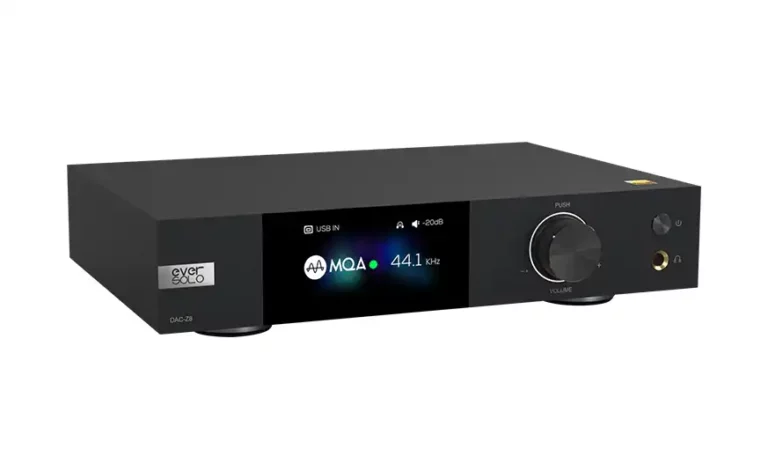

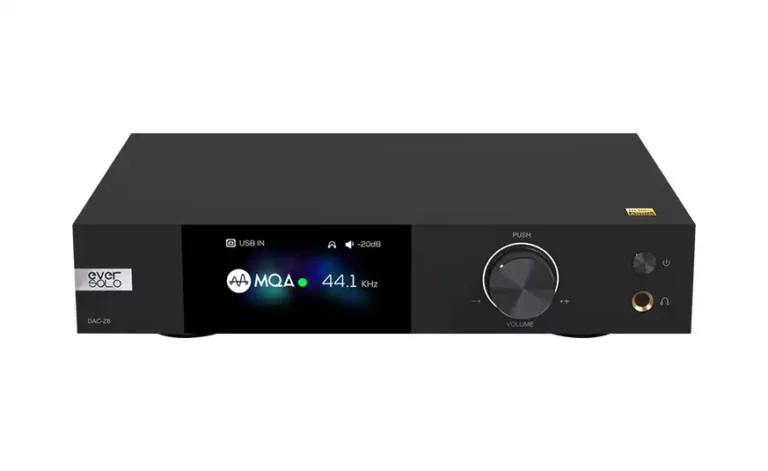

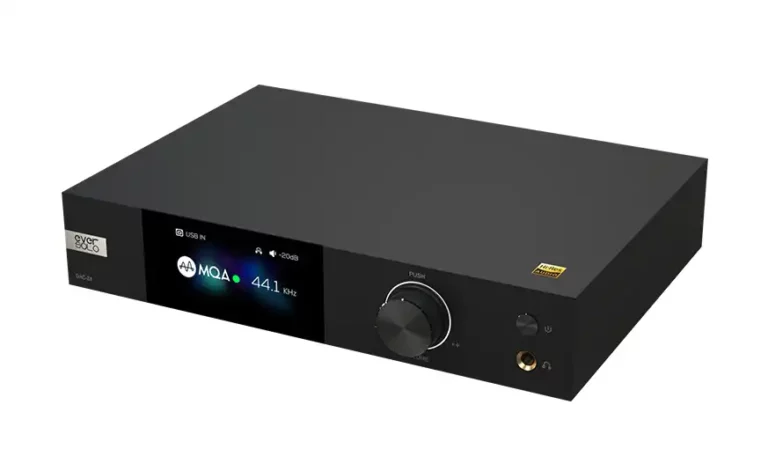

EverSolo DAC-Z8

The ultimate high-resolution music experience is here! Escape the everyday world with the EverSolo DAC-Z8 – bringing you the perfect quality of sound no matter what you choose to listen to. Equipped with the renowned ESS Sabre ES9038Pro 32-bit D/A converter chip, the DAC-Z8 delivers unparalleled clarity and accuracy of sound with incredible detail. The 3rd-generation XMOS XU316 adds to the excellence, providing you with superior performance and faster speed.

This incredible DAC also offers up to DSD512 Native as well as PCM768KHz@32Bit decoding. You’ll also find a Qualcomm QCC5125 Bluetooth 5.0 module, allowing you to take advantage of APTX HD/LDAC protocols. Plus, the EverSolo’s headphone amp output and 16-300 ohm headphone driver guarantee incredible audio experiences every time.

This advanced DAC is all wrapped up in a sleek and modern design, complete with a 3-inch LCD screen in order to easily monitor sound and get the most out of the diverse VU meter mode. An exclusive mobile phone controller APP allows you to control the DAC from anywhere in the world.

Experience the highest-quality music imaginable with the EverSolo DAC-Z8. Immerse yourself in a clear and accurate soundscape unlike any other. A soundscape that will bring endless sophistication to your music experiences.

RCA and XLR Separate Output

In order to reduce the possible signal interference of the RCA and XLR simultaneous output, Z8 RCA and XLR are output separately to achieve higher audio indicator and better audio performance. For sure, RCA and XLR can be output at the same time by setting manually.

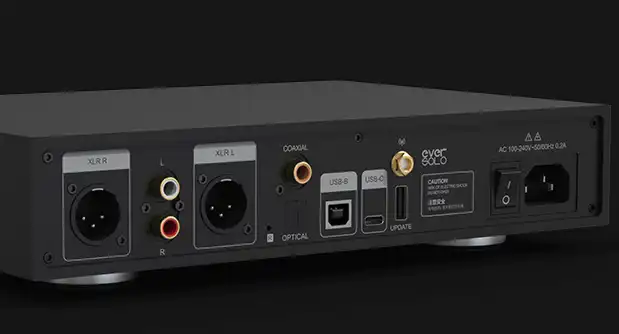

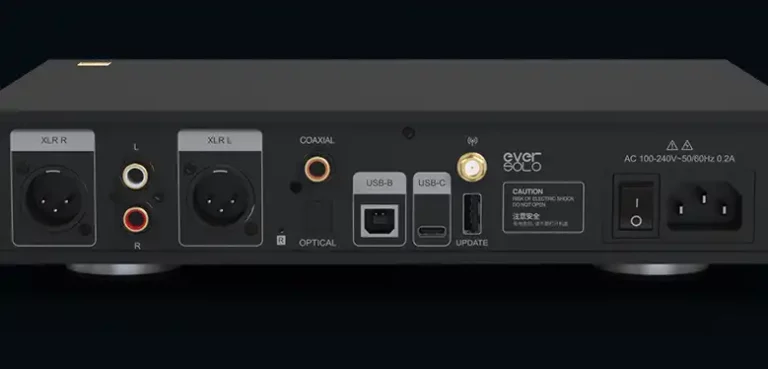

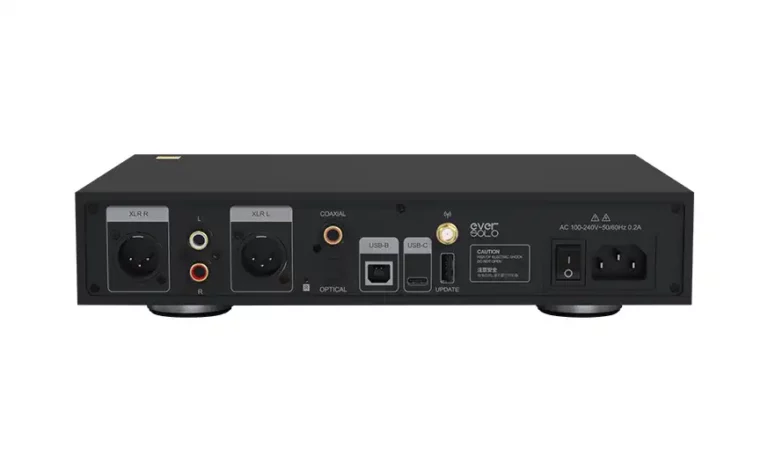

Multiple Ports to Connect with Diverse Audio Source

DAC-Z8 has rich ports for digital audio input, including Coaxial, Optical, asynchronous USB DAC, Type-C for computers and mobile devices. APTX HD Bluetooth audio input can be used to connect with computers, streamers, CD players and mobile devices etc.

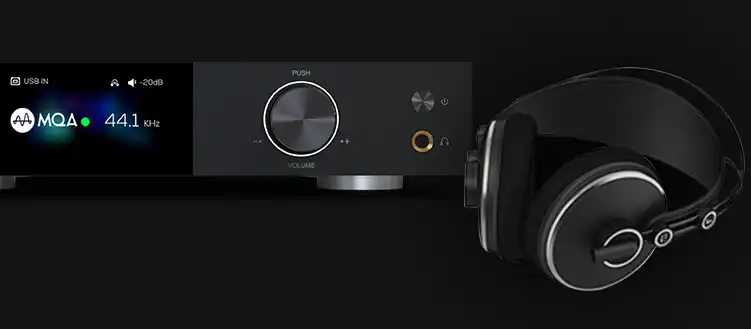

Monitor-level Headphone Amplifier

The professional headphone driver circuit in DAC-Z8 has excellent audio indicators and strong driving force, which means DAC-Z8 can be used as a high-performance headphone amplifier and drive 16-300ohm HiFi headphones, with both high and low gain output options.

Exclusive Controller APP

DAC-Z8 can be easily controlled by mobile phone with the EVER SOLO Controller APP.
Almost all settings can be done in the APP via Bluetooth technology.

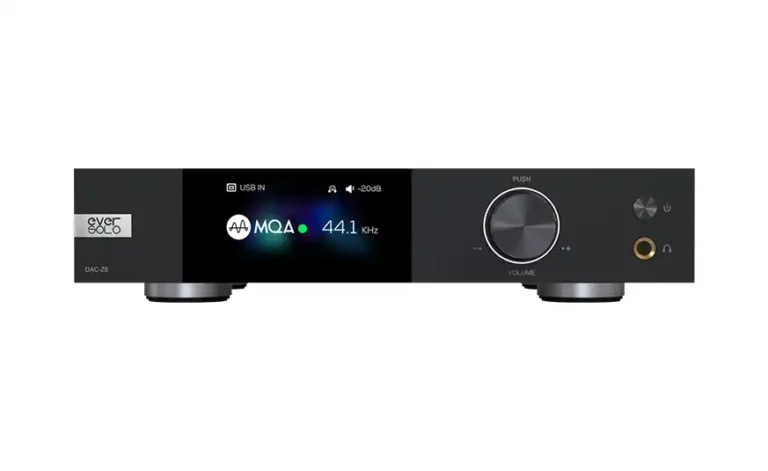

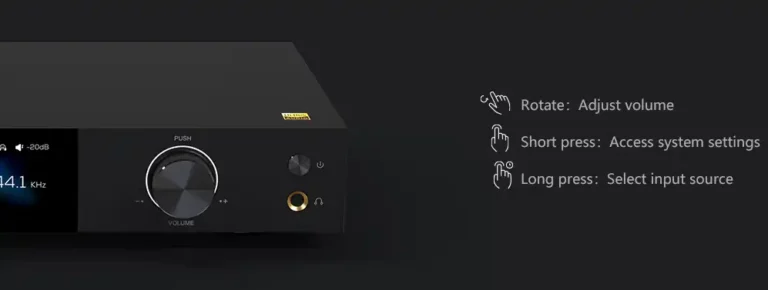

Multifunctional Knob

The knob on the front panel is multifunctional, not only can be used for volume adjustment but also for menu selection, such as, input source switching, output selection, filter modes, UV meters, system language setup and firmware update etc. The embellishment of ambient light looks scientific and technological. It works as a supplement so that the device can still be controlled without the remote control.

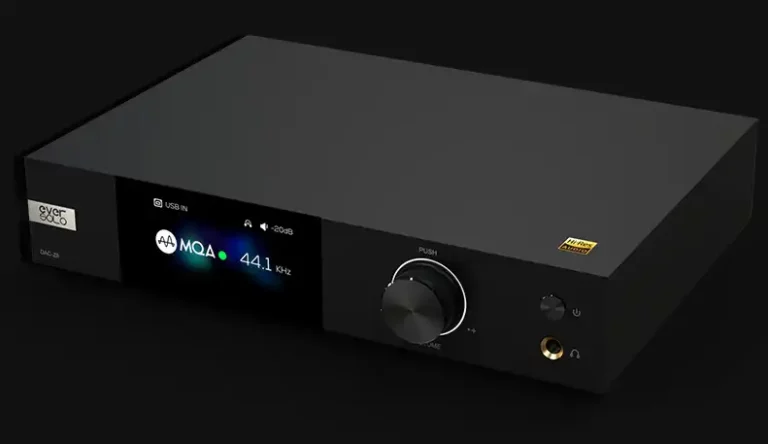

Aluminum Chassis

DAC-Z8 is made of aviation aluminum, processed by CNC workmanship, coming with a stable body structure. It is a combination of exquisite appearance design and modern elements.

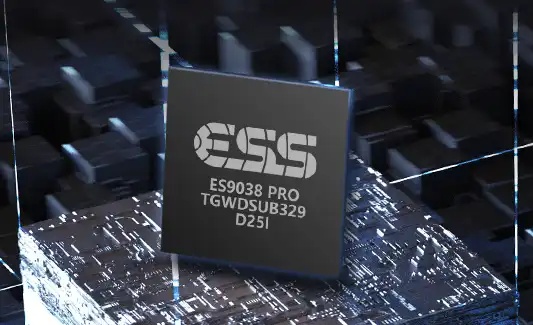

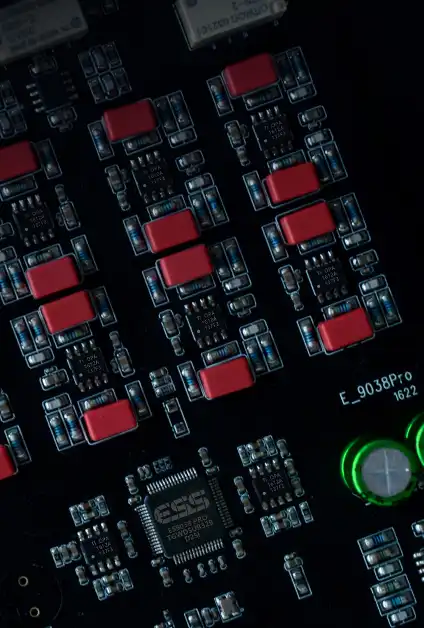

High Performance DAC ES9038Pro

ESS flagship ES9038Pro DAC is known as the industry benchmark, with relatively lower total harmonic distortion level, extremely low noise and distortion. Let ‘s enjoy the authentic high-fidelity music experience.

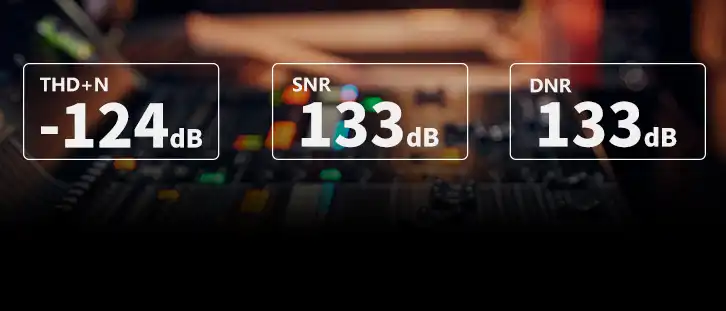

Professional Calibration

Benefited from development engineers’ rich experience in analog circuit design, DAC-Z8 has professional calibration and circuit design. The total harmonic distortion ratio which has been measured is -124dB (0.000062%), signal-to-noise ratio and dynamic range are 133dB. These industry leading indicators are solid foundation for good sound quality.

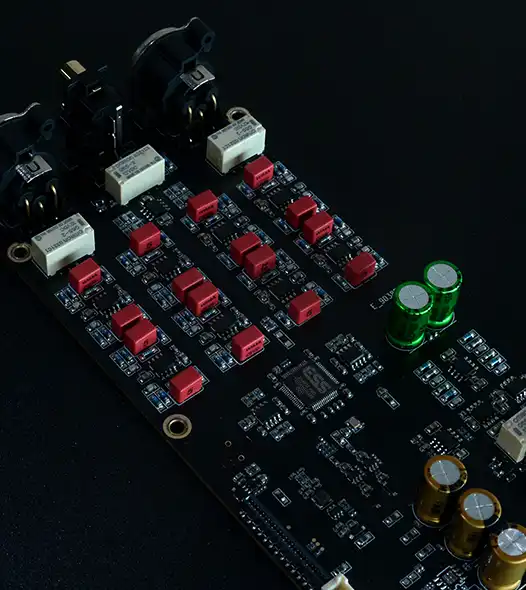

Shunt Compensation and 8 OPA1612 I/V Circuit

DAC-Z8 I/V circuit is made up of 8pcs of OPA1612. The multichannel signal shunt compensation technology has been adopted, 8 OPA1612 correspond to 8-channel output for I/V signal conversion, then output to 2 channels in parallel. In addition to high-precision resistances, it helps amplifying XLR, RCA and headphone output signal lossless, im- proving channel separation, dynamic range and the sound integrity.

Differential Amplifier Circuit and Balanced Preamp Output

The analog audio circuit is fully balanced design. XLR, RCA and headphone output are all processed by a bal- anced differential amplifier circuit. The noise has been eliminated by resolving the crosstalk of the shared loop and improving channel separation. The high-fidelity preamp circuit supports refined volume adjustment, without needing to connect with an additional preamp.

High Precision Clock Oscillators

Two low jitter clock oscillators (45.1584MHz and 49.152MHz) are integrated in DAC-Z8, which corre- spond to 44.1 KHz and 48KHz multiplied sampling management. Audio decoding is more accurate.

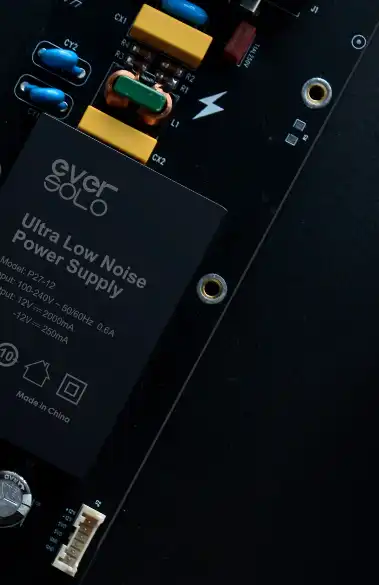

Low Ripple Power Module

Low-noise regulated power supply module and dedicated audio filter capacitor are tailored for DAC-Z8. It powers for audio circuit and ensures clearer sound, with low ripple and less interference.

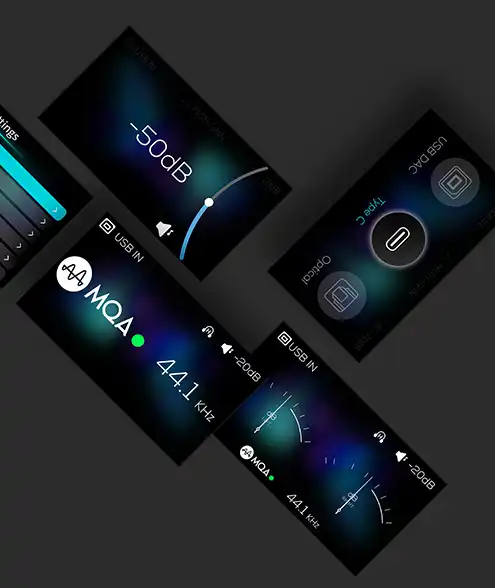

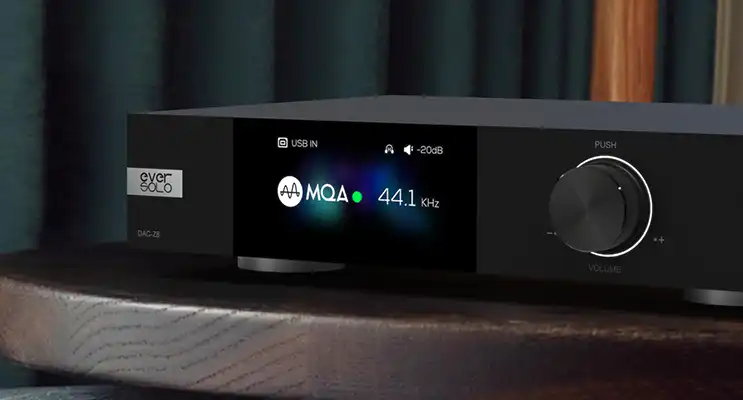

Colorful and Practical User Interface

The 3-inch LCD display on DAC-Z8 shows the colorful user interface of menu setting, audio source selection, VU meter and audio info. UI is cool and user-friendly, with some personalized preference settings.

Qualcomm QCC5125 Bluetooth Module

DAC-Z8 Bluetooth audio receiver adopts Qualcomm QCC5125 module. It is Bluetooth 5.0 and supports SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth audio protocol. Enjoy CD quality music conveniently by connecting mobile phone, tablet and computer.

Abundant Digital Filters

Different digital filter modes in DAC setting to meet different demands, there are 7 PCM filters and 4 DSD filters for you to choose.

DAC-Z8

DAC-Z8 includes MQA (Master Quality Authenticated) technology, which enables you to play
back MQA audio files and streams, delivering the sound of the original master recording. Visit mqa.co.uk for more information.

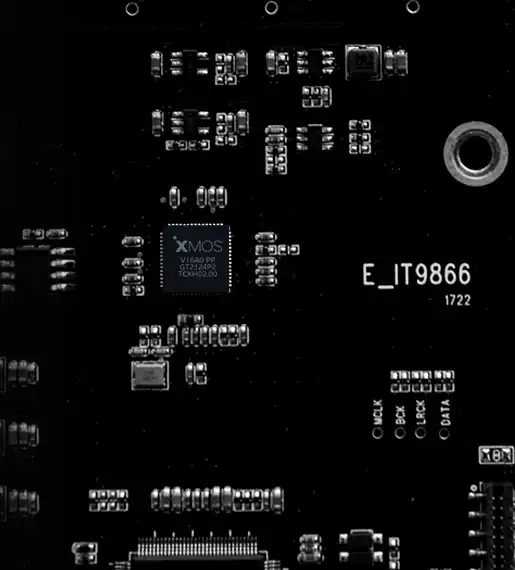

XMOS 316

The 3rd generation XMOS 316 has faster processing speed and better USB bandwidth, which ensures lossless transmission for high-definition audio data. USB output supports DSD512 Native, PCM768@32bit and MQA full decoding. Optical and Coaxial output support DSD 64 (DOP) and PCM192@24Bit.

Features overview

ACCESSORIES

Included : Remote control, Power cable, User manual

AUDIO

DAC : ES 9068*2

Processor Type : XMOS XU316

DIMENSIONS

Width : 270 mm / 10.63 inch(es)

Depth : 187 mm / 7.36 inch(es)

Height : 50 mm / 1.97 inch(es)

GENERAL

Model : EverSolo DAC-Z8

Display Type : 3-inch LCD screen

Chassis : Aviation aluminum alloy

Dac Chip : OPA1612*10

Power Supply Voltage : Low noise switching power supply

Control Option(s) : Remote control, mobile APP control and knob control

Headphone impedance : 16-300Ω （low gain mode:16-32Ω/high gain mode: 32-300Ω）

Nominal Input Power : AC 110~240V 50/60Hz

Rated Output Power : 9W

INPUTS/OUTPUTS

Audio input(s) : Qualcomm QCC5125 Bluetooth module, BT5.0 ◊ Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol

USB-DAC (USB-B) : Compatible with Windows (7, 10), Mac, Android and IOS ◊ Up to stereo DSD512, PCM 768KHz 32Bit and MQA

USB-DAC (USB-C) : Compatible with Windows (7, 10), Mac, Android and IOS ◊ Up to stereo DSD512, PCM 768KHz 32Bit, MQA

Digital Optical Audio Inputs : Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

Digital Coaxial Audio Inputs : Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

Analog Audio Output(s) : Preamp output: XLR (balanced), RCA; ◊ Headphone amp output: 6.35mm single-ended

USB : USB2.0*1（only for firmware upgrade）

XLR Outputs : Output level(Vrms): 4.1Vrms@0dBFS ◊ THD+N@A-wt: 0.000062%@1kHz（-124dB@1kHz） ◊ THD+N@No-wt：0.000069%@1kHz（-123dB@1kHz） ◊ Noise@No-wt: <1.2uVrms ◊ SNR @No-wt: 133dB@1kHz ◊ Frequency response: 20Hz-20kHz(±0.1dB) ◊ Crosstalk: -130dB@1kHz ◊ DNR @No-wt: 133dB@1kHz

RCA Outputs : Output level (Vrms): 2.3Vrms@0dBFS ◊ THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz) ◊ THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz) ◊ Noise @No-wt: <1.5uVrms ◊ SNR @No-wt: 126dB@1kHz ◊ Frequency response: 20Hz-20kHz(±0.1dB) ◊ Crosstalk: -123dB@1kHz ◊ DNR@No-wt: 126dB@1kHz

Headphone Output(s) : (low gain mode) Output level(Vrms): 1.2Vrms@0dBFS ◊ Maximum undistorted power: 45 mW@32Ω ◊ THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz) ◊ THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz) ◊ Noise @No-wt: <2uVrms ◊ SNR@No-wt: 124dB@1kHz ◊ Frequency response: 20Hz-20kHz(±0.1dB) ◊ DNR @No-wt: 119dB@1kHz ◊ (high gain mode) Output level(Vrms): 2.8Vrms@0dBFS ◊ Maximum undistorted power: 26 mW@300Ω ◊ THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz) ◊ THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz) ◊ Noise@No-wt: <2uVrms ◊ SNR@No-wt: 124dB@1kHz ◊ Frequency response): 20Hz-20kHz(±0.1dB) ◊ DNR @No-wt: 124dB@1kHz
