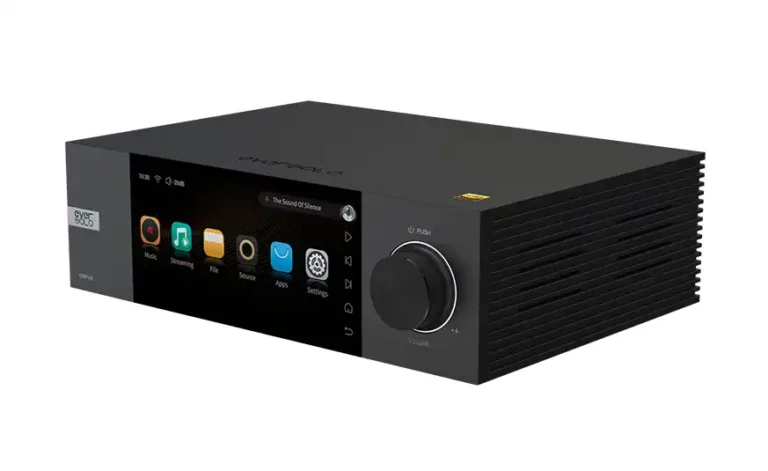

EverSolo DMP-A6: Network Audio Streamer DAC

EverSolo DMP-A6

No review

|Submit a review

$1299.99



Ecofees included

This product is available for online order.

This product is available in store.

Quantity

CENTRE HI-FI BOISBRIAND

Available

See on map

Available

CENTRE HI-FI BROSSARD

Available

See on map

Available

CENTRE HI-FI GRANBY

Available

See on map

Available

CENTRE HI-FI JOLIETTE

Available

See on map

Available

CENTRE HI-FI LAVAL

Available

See on map

Available

CENTRE HI-FI POINTE CLAIRE

Available

See on map

Available

CENTRE HI-FI ST-BRUNO

Available

See on map

Available

CENTRE HI-FI BAIE-SAINT-PAUL

Contact the store

See on map

Contact the store

CENTRE HI-FI CHARLEVOIX

Contact the store

See on map

Contact the store

CENTRE HI-FI COATICOOK

Contact the store

See on map

Contact the store

CENTRE HI-FI DOLBEAU

Contact the store

See on map

Contact the store

CENTRE HI-FI LA SARRE

Contact the store

See on map

Contact the store

CENTRE HI-FI ONLINE STORE

Contact the store

See on map

Contact the store

CENTRE HI-FI ROBERVAL

Contact the store

See on map

Contact the store

CENTRE HI-FI SHAWINIGAN

Contact the store

See on map

Contact the store

CENTRE HI-FI ST-HYACINTHE

Contact the store

See on map

Contact the store

CENTRE HI-FI ST-JEAN

Contact the store

See on map

Contact the store

CENTRE HI-FI ST-JÉRÔME

Contact the store

See on map

Contact the store

CENTRE HI-FI STE-MARIE DE BEAUCE

Contact the store

See on map

Contact the store

CENTRE HI-FI TERREBONNE

Contact the store

See on map

Contact the store

CENTRE HI-FI VALLEYFIELD

Contact the store

See on map

Contact the store

EverSolo DMP-A6: Functional overview

Solid aluminium alloy chassis, brushed panel.

Quad-core ARM Cortex-A55 professional processor.

6″ large LCD colour touchscreen, easy control.

Based on Android 11, deeply tailored system.

4GDDR+32GeMMC large memory for masses of applications.

Support M.2 NVME 3.0 SSD (not included), up to 4TB.

2xES9038Q2M DAC for independent stereo decoding.

Support DSD512 Native, PCM768KHz@32Bit, MQA full decoding.

The 3rd generation XU316 for higher performance and processing speed.

Low-jitter dual clock synchronous processing with higher accuracy.

Fully balanced circuit, XLR balanced and RCA single-ended hi-fi pre-out.

2x DOH chips, support HDMI DSD Native and D2P multi-channel output(Up to 5.1).

Qualcomm QCC5125 Bluetooth 5.0 module with APTX HD.

Low noise, high quality power supply, providing pure power source for audio circuits.

Support mastering audio formats DSD (.dsf/.dff/.iso/.dst), APE, FLAC, WAV, MQA, etc.

Support 2-channel and Multi-channel Gapless playback(FLAC,WAV)

Personalised music management, lyric matching and music data matching.

EOS audio engine developed by Eversolo, globally bypassing SRC restrictions.

Support Direct audio in 3rd party APPs (Apple Music hi-res direct output).

Full decoding and rendering support for MQA on Optical, Coaxial and USB input etc.

Support USB, Optical, Coaxial, HDMI digital audio Bit-perfect output.

Support external USB optical drive for CD disc playback and CD ripping.

Music services Tidal, Qobuz, Highresaudio, Amazon etc.

Support Roon ready, Tidal Connect, etc.

Support music playback from DLNA.

Support NFS, SMB, Web DAV, UPnP protocols to access storage devices shared in the LAN.

Support built-in SMB network media sharing service for easy local media sharing.

Exclusive mobile APP for Android/IOS mobile phones and tablets.

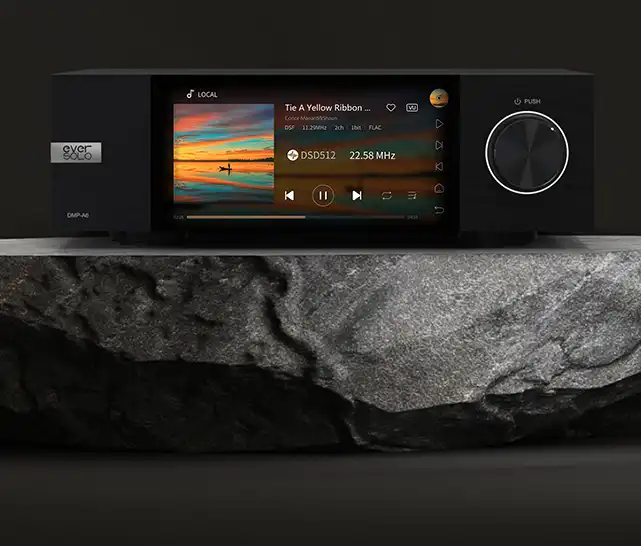

EverSolo DMP-A6: A New Epoch is Beginning

With years of development, DMP-A6 has reformed traditional streamers by solving pain points across the industry, it implies the beginning of a new epoch. DMP-A6 is an all-in-one player, with quad-core processor and large memory, tailored for lossless music playback. Rich digital input and output ports, HDMI DSD multi-channel output, dual ESS9038Q2M professional DAC, fully balanced differential circuit and professional audio tuning, all of them contribute to the superior performance of DMP-A6. Unprecedented experience is offered to music lovers with music streaming services, local music management, mobile APP and exclusive control system.

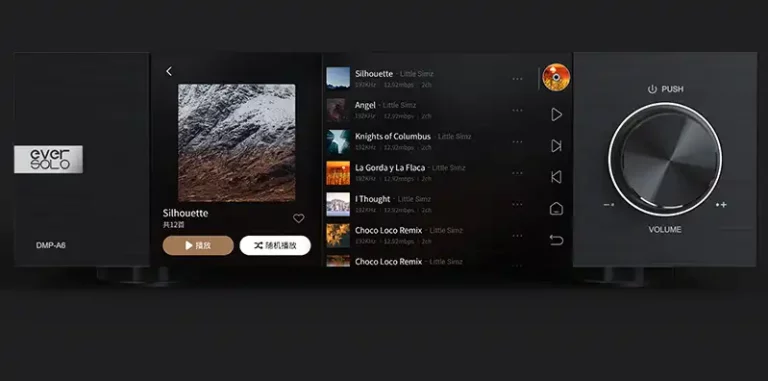

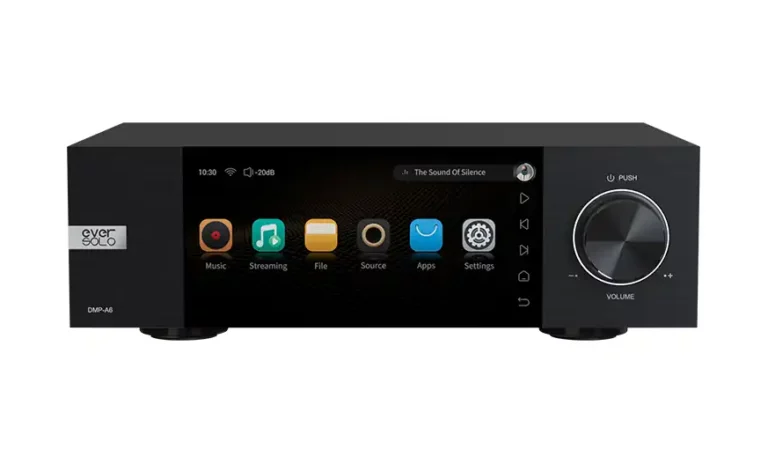

Large LCD Touchscreen for Better User Interaction on EverSolo DMP-A6

Equipped with a large 6″ LCD high-definition touchscreen, DMP-A6 has a professional streamer system, simple but exquisite user interface, as well as on-screen intuitive touch controls for system settings, local music library and third-party apps, it runs smoothly as a mobile phone.

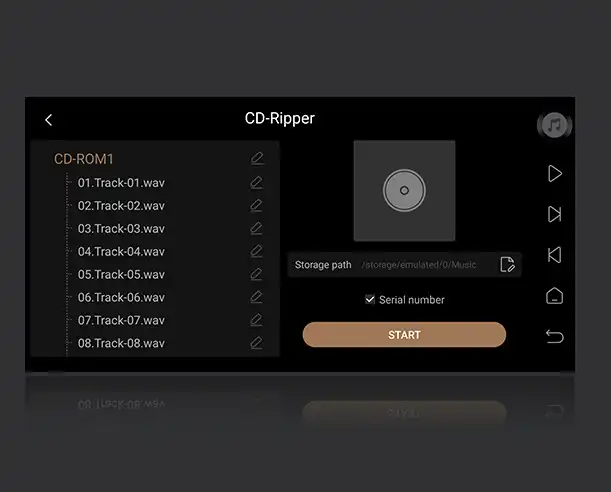

CD Playback and Ripping on EverSolo DMP-A6

The DMP-A6 allows for CD playback by connecting an external USB optical disc. CD Rip APP adopts a data validation mechanism and error correction function to save audio data from CD losslessly. The application’s algorithm intelligently matches CD album and song names (officially released CDs are required), losslessly rips tracks and automatically generates album and artist info.

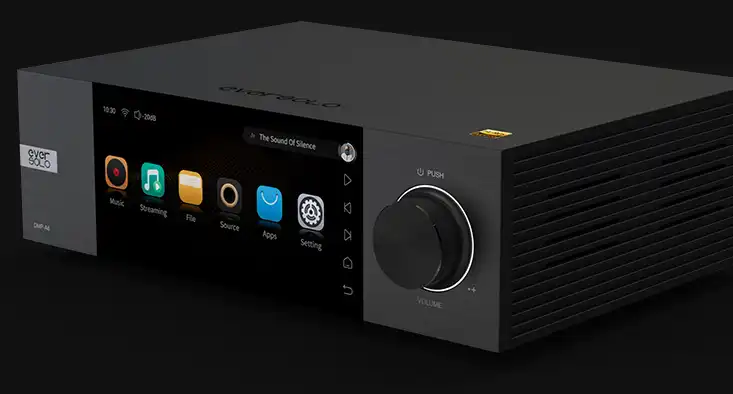

EverSolo DMP-A6 is Made With Aluminium Chassis

Unique Appereance

The DMP-A6 is made from aviation aluminium and features a CNC machined body for a solid construction. The brushed panel and frosted anodized body are a great combination of classic and modern elements to suit the preferences of experts.

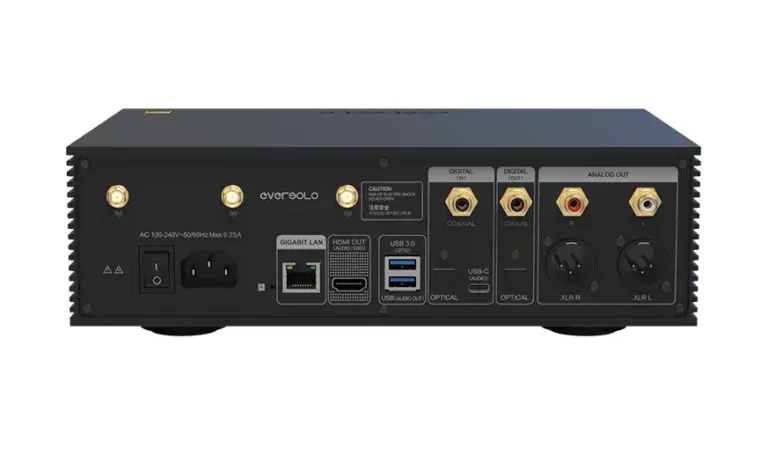

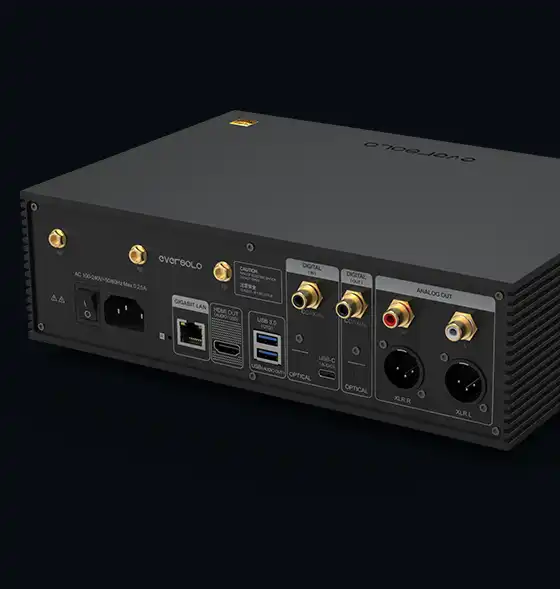

Rich Input and Output Ports

DMP-A6 can be used as a digital turntable to connect with various high-end decoding devices by digital output ports including HDMI, USB, Optical and Coaxial. As a decoder, DMP-A6 can connect with audio source equipment like PC and mobile devices by Coaxial, Optical, Type-C inputs and APTX HD Bluetooth. XLR and RCA outputs are to connect with active speakers or power amplifiers.

Music Library for Local Playback

Eversolo Music Library not only provides excellent local music playback performance But also greatly improves user interest in music management. It can add music files from a local hard drive or network storage and automatically retrieve music metadata from the cloud to build a custom music library by matching artists, albums, local CUE file and so on; songs are displayed in categories based on genres, albums, artists and sample rates; making a list of your favorite songs and searching for them by album, artist, or song initials.

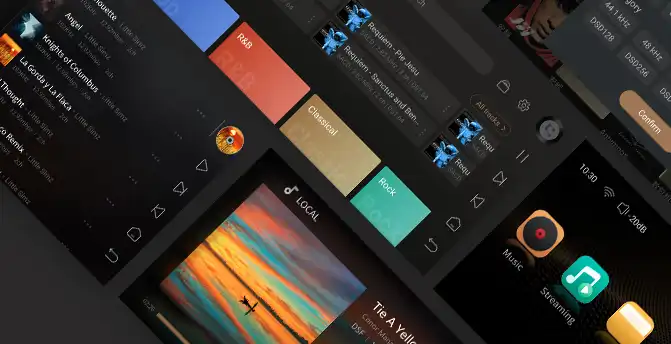

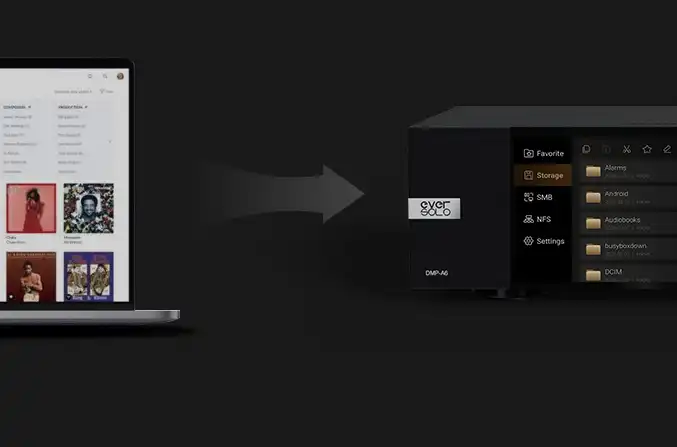

Effective Media Management System

The DMP-A6 offers a robust media management system that enables editing operations for local hard drive and network storage like copying, copying, pasting, cutting, deleting. USB OTG port can be configured as USB OTG, making it easy to connect the PC to DMP-A6 via USB cable for local file copying and management. Internal SMB sharing function allows to share media files from connected mobile device or internal SSD to other media playback devices, computers or mobile devices in the LAN. So that DMP-A6 can be used as a network storage device to share audio audio sources at any time.

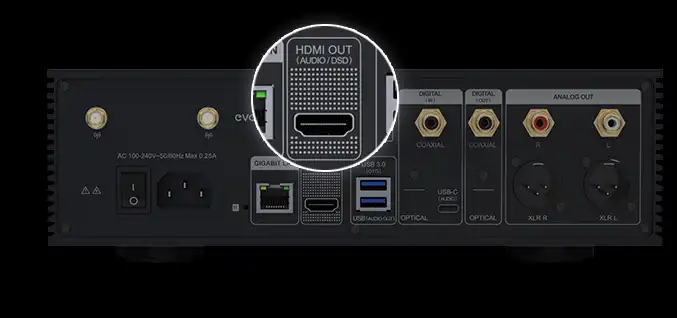

DOH Chips for HDMI DSD Multichannel

As a multi-channel streamer, DMP-A6 adopts DOH processing chips for HDMI audio especially to play and output master DSD music. Except for the support of DSD Native multi-channel raw output and D2P output (PCM multi-channel output) decoding, it also provides regenerated high-precision independent clock for HDMI. So that it can also be used as a digital turntable.

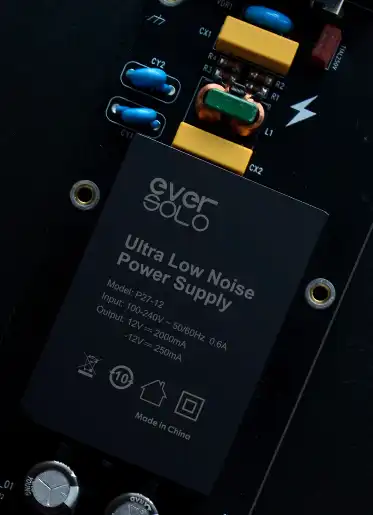

Low Ripple High Performance Power Module

The DMP-A6 is equipped with a low-noise regulated switching power supply module and several dedicated audio capacitors with less ripple and interference. Choke filter circuit is specifically made for AC input, reducing high-frequency line noise in the region of 100 KHz to 5 MHz, ensuring cleaner power, a softer background noise, and clearer musical details.

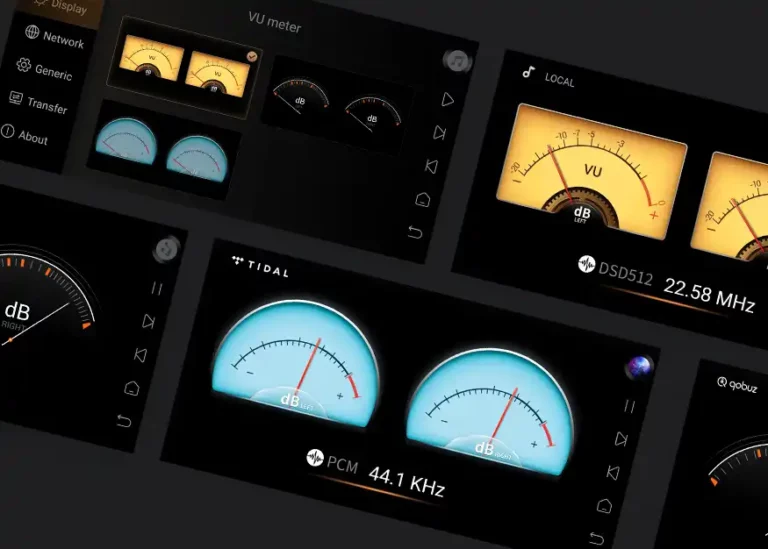

Personalised VU Meters

A wide range of personalized dynamic VU meters are tailored for audiophiles. A wonderful interactive experience is offered with real-time full-format music display, including DSD.

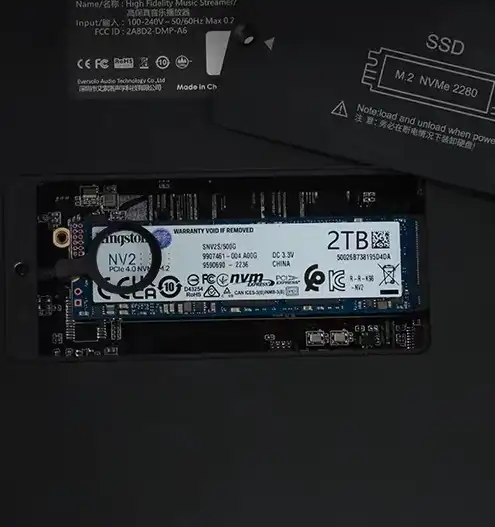

Internal High-speed M.2 SSD Slot

A M.2 NVME 3.0 2280 SSD slot is built in to install SSD without removing the cover, the maximum storage is 4TB. Faster, stable and no noise, it is the key for local high-quality music playback.

Low Jitter Dual Clock Processing

Low-jitter high-precision dual clocks are designed for DMP-A6. Two high-precision crystal oscillators (45.1584MHz and 49.152MHz) respectively correspond to 44.1 KHz and 48KHz multiplied sampling, effectively reducing jitter and achieving more precise audio decoding.

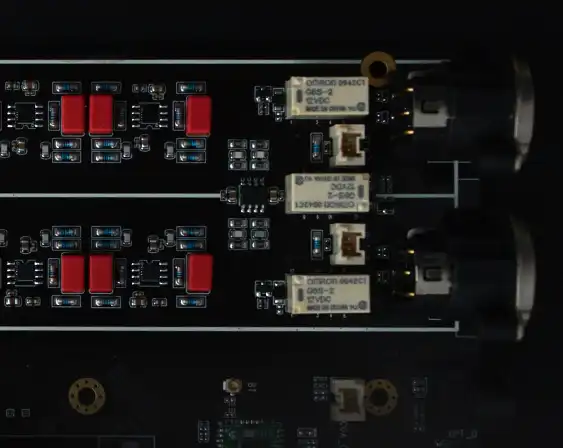

Fully Balanced Preamp Circuit

DMP-A6 analog circuit adopts fully balanced design from DAC chip to the XLR and RCA stereo output. It provides better noise immunity, improves channel separation by eliminating shared loops for stronger and more consistent signal quality.

Master Recording Playback and Decoding

Almost all ultra-high sampling master recording formats are supported by DMP-A6, including CD-quality formats (FLAC, WAV, APE), DSD512 (.dsf/.dff/.iso/.dst) stereo/multichannel and MQA etc.

Self-developed EOS Audio Engine

EOS (Eversolo original sampling-rate audio engine) is developed by Eversolo engi- neers, with the support of outputting original sampling rate, that is, audio playback completely bypasses the Android SRC restriction, supporting the Direct audio output of third-party apps (Apple Music hi-res Direct output).

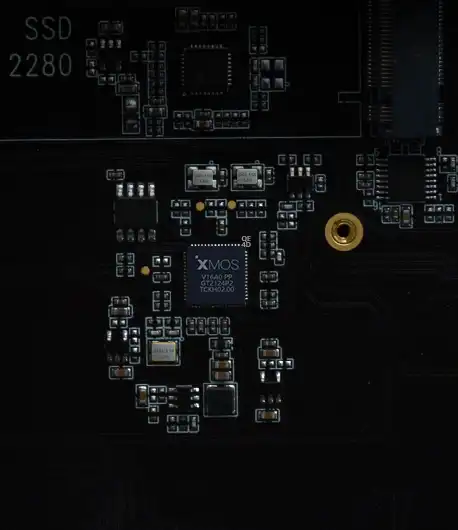

3rd Generation XMOS 316 Audio Solution

With 3rd generation XMOS 316 audio processor, DMP-A6 has faster speed and higher USB bandwidth, ensuring the lossless transmission of high-definition audio data. USB port supports DSD512 Native, PCM768@32bit and MQA full decoding. Optical and Coaxial ports support DSD 64 (DOP), PCM192@24Bit.

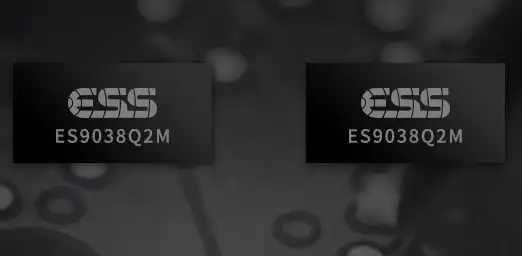

2x ES 9038Q2M DAC Decoding

2x ES 9038Q2M are used to establish Double Differential Quadruple Converter for DMP-A6 DAC decoding. Two DAC chips correspond to two channels for D/A conversion output independently. So that it effectively avoids the interference between channels, reduces the background noise, obtains better signal-to-noise ratio, and greatly improves the dynamic range and other audio indicators. Supporting DSD512, PCM768@32bit, and MQA hard decoding.

Professional Tuning and Reliable Audio Indicators

The DMP-A6 has been expertly tuned, and the circuit has been thoughtfully con- structed, thanks to the wealth of knowledge from engineers at Eversolo who have been actively involved in the audio industry for many years. THD+N is -120 dB (0.00009%), SNR is 128 dB and dynamic range is 128 dB. The leading indicators provide a strong base for high sound quality.

Qualcomm QCC5125 Module

The Qualcomm QCC5125 Bluetooth audio receiving module used by the DMP-A6 supports SBC/AAC/aptX/aptX LL/aptX HD/LDAC and is compatible with Bluetooth 5.0. Connecting with mobile phones, tablets, and laptops via Bluetooth allows for simple music playback and CD-quality sound.

Handpicked Audio Components

Sound quality of DMP-A6 analog output is monitor-level. The primary elements of the audio circuit are excellent, including WIMA capacitors from Germany, NICHCON dedicated audio capacitors, Murata chip capacitor and Omron relays from Japan, TI Audio Operational Amplifiers from the USA etc. The goal is to provide more authentic and pure sound performance.

DMP-A6

DMP-A6 includes MQA (Master Quality Authenticated) technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

Digital Filters Meet Different Personal Preferences

The DAC setting of the DMP-A6 provides seven types of digital filters, with different modes corresponding to different sound characteristics, which can be switched according to personal preferences.

Wireless Music Streaming

Roon Ready, Tidal Connect, DLNA are supported by the DMP-A6. High quality music can be streamed online to mobile devices in the same LAN, make it simpler to enjoy online music services and easier to play back music at home.

roon READY

Roon is an incredibly rich and engaging way to browse and organize your music. It runs on most Mac, Windows, and Linux PCs, or on other products which include Roon Core. Being Roon Ready means that Eversolo network players transparently discover and connect to Roon without any configuration, and bit-perfect audio is delivered from Roon to your network player. Together, Roon and Eversolo deliver the power, flexibility, and performance of networked audio, with the easiest setup and highest reliability available.

Multiple Network Protocols

DMP-A6 not only has two high-speed USB 3.0 ports, an SSD slot for local storage expansion, but also supports NFS, SMB v1/v2/v3, and UPnP sharing protocols, allowing users to browse and play multimedia content saved on NAS or network drives connected in the same LAN with gigabit network. Even high data rate DSD512 master files can be played without stuttering.

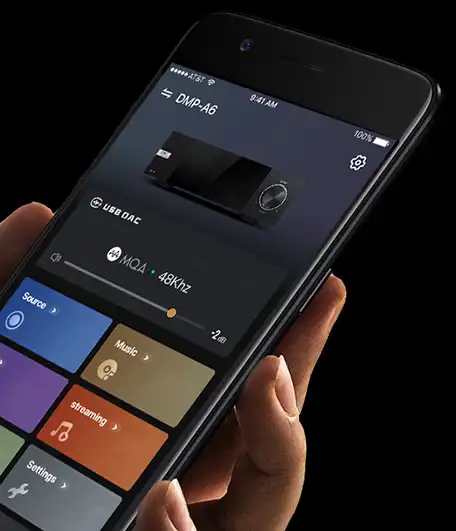

Smart Control App

Android/iPhone/iPad control apps are developed for the DMP-A6. In addition to basic playback control and system set-
Sweetest Perfection
tings, they also support asynchronous viewing of music library data and menus, which is convenient for music playback and data searching. Screen mirroring is also supported by installing third-party APP.

Hi-Res Audio

The DMP-A6 is Hi-Res Audio certified by JAS, with superior sound quality.

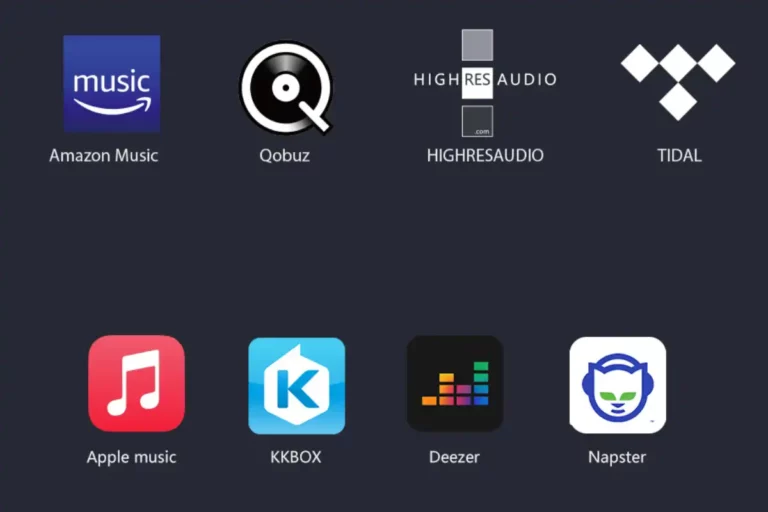

Music Services at Your Fingertips

The DMP-A6 incorporates popular music services like TIDAL, Qobuz, HIGHRESAUDIO, Amazon music etc. You can take advantage of numerous high-quality online music services and revel in the allure of limitless streaming music.

Support for numerous third party APPs, high resolution audio Direct output using the original EOS engine.

*The number of installed music services depends on certification progress. Please be subjected to the actual firmware, more music services are coming.

Features overview

ACCESSORIES

Included : Remote control, Power cable, User manual, Screwdriver

AUDIO

DAC : ES 9038Q2M*2

Processor Type : XMOS XU316

DIMENSIONS

Width : 270 mm / 10.63 inch(es)

Depth : 187 mm / 7.36 inch(es)

Height : 90 mm/ 3.54 inch(es)

GENERAL

Model : EVERSOLO DMP-A6

Display Type : 6" LCD touchscreen

Internal Memory : 4GDDR4 +32GeMMC

Dac Chip : OPA1642

Power Supply Voltage : Low noise, high quality switching power supplies

SSD Disk : M.2 NVME 3.0 2280 protocol, up to 4TB

Streaming Services : Tidal, Qobuz, Highresaudio, Amazon, WebDAV, UPnP, Air Play, DLNA, Spotify, Tidal Connect, Qobuz Connect etc.

Nominal Input Power : AC 110~240V 50/60Hz

Rated Output Power : 13W

Control Option(s) : Mobile App，Touch screen control

Additional Feature(s) : Playback and DAC Decoding (Support up to stereo DSD512, PCM 768KHz 32Bit, MQA)

INPUTS/OUTPUTS

USB : USB-A : USB3.0*2

Ethernet : RJ-45(10/100/1000Mbps)

Wi-Fi : WiFi 2.4G+5G dual band

Audio input(s) : BLuetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC

USB-DAC (USB-C) : USB Audio Compatibility: Windows (7, 10), Mac, Android, IOS ◊ Support up to stereo DSD512, PCM 768KHz 32Bit, MQA

Digital Coaxial Audio Inputs : Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA

Digital Coaxial Output(s) : Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA

HDMI Output(s) : DSD64 Native multi-channel/PCM192KHz multichannel raw output(Up to 5.1)

XLR Outputs : Output level: 5.2V ◊ Frequency response: 20Hz~20KHz(±0. 15dB) ◊ Dynamic range: > 128dB ◊ SNR: >128dB ◊ THD+N: <0.00009%(-120dB) @A-wt ◊ Crosstalk: >-125dB

RCA Outputs : Output level: 2.6V ◊ Frequency response: 20Hz~20KHz (±0. 2dB) ◊ Dynamic range: > 124dB ◊ SNR: >124dB ◊ THD+N: <0.00011%(-119dB)@A-WT ◊ Crosstalk: >-124dB
