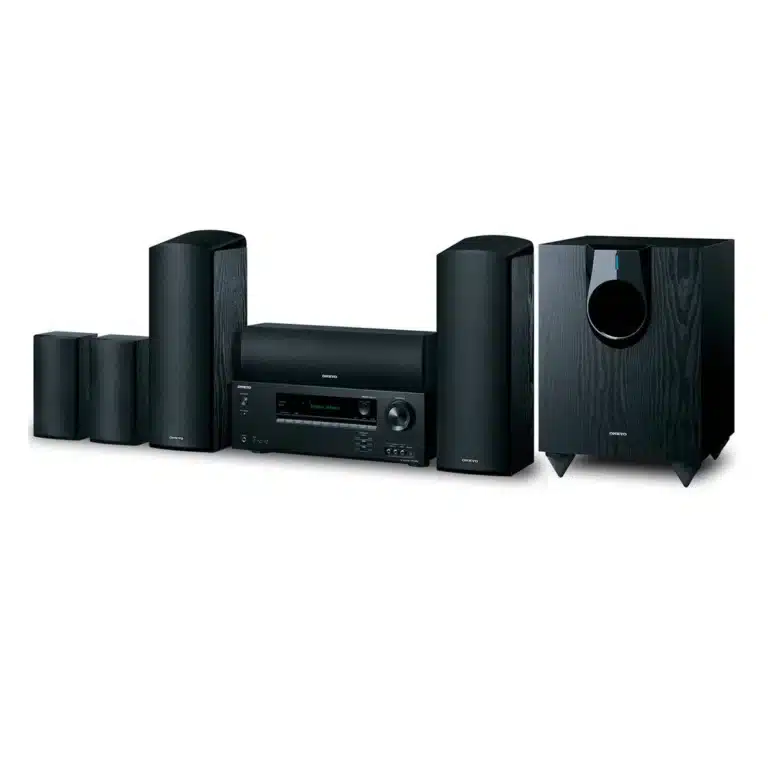

Onkyo HT-S5910 5.1.2 Channel Dolby Atmos Home Theater System

CONNECTIVITY

Bluetooth : Version: 4.2 ◊ Frequency: 2.4 GHz ◊ Modulation Method: FHSS (Frequency Hopping Spread Spectrum) ◊ Compatible Profiles: A2DP 1.3, AVRCP 1.5, HFP (Hands-Free Profile) 1.6, HSP (Headset Profile) 1.2, SPP (Serial Port Profile) 1.2 ◊ Codecs: SBC, AAC ◊ Transmission Range: 20 Hz to 20 kHz (A2DP, 44.1 kHz Sampling Frequency) ◊ Range: 49.2' / 15 m with Line of Sight

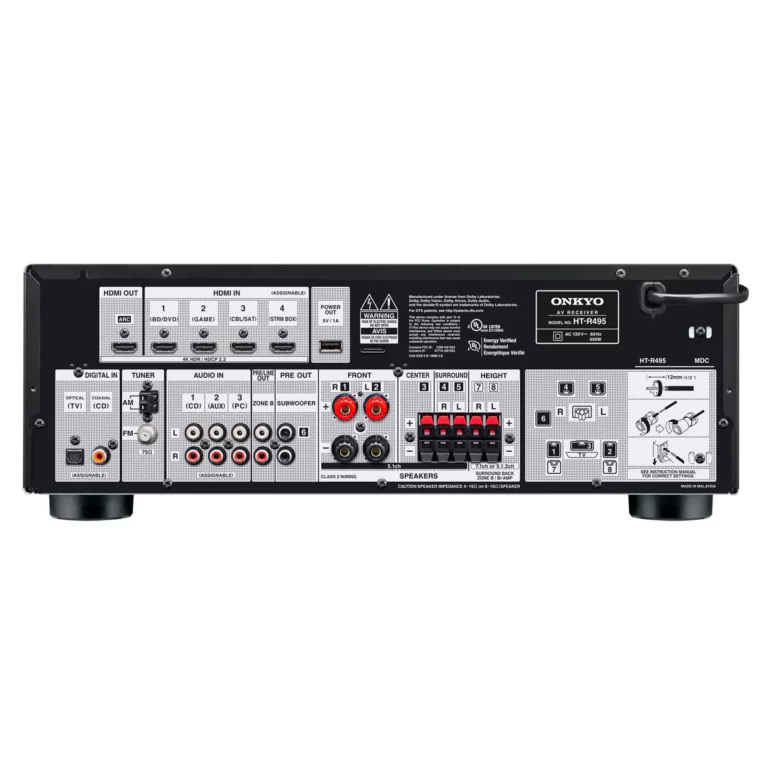

Input(s) : 4 x HDMI ◊ 1 x Optical TOSLINK ◊ 1 x RCA Digital Coaxial ◊ 3 x Stereo RCA

Output(s) : 1 x HDMI ◊ 1 x 1/4" / 6.35 mm Headphone (Front) ◊ 1 x Stereo RCA Zone B ◊ 2 x Subwoofer Pre-Out

HDMI : ARC, 3D, 4K UHD @ 60 Hz, 6G, HDR10, BT.2020, HLG, Dolby Vision, Auto Lip Sync, CEC

Other(s) Port(s) : 1 x AM Antenna In ◊ 1 x FM Antenna In ◊ 1 x USB Type-A Power Out ◊ 1 x 1/8" / 3.5 mm Setup Mic (Front) ◊ 2 x Banana Plug-Compatible Binding Post Pairs (Front L/R) ◊ 5 x Spring Clip Pairs (Center, Rear L/R, Height L/R)

DIMENSIONS

Length : Receiver: 17.1 inch(es) / 435 mm ◊ Each Front/Height Speaker: 6.1 inch(es) / 155 mm ◊ Center Speaker: 16.1 inch(es) / 409 mm ◊ Each Surround Speaker: 4.53 inch(es) / 115 mm ◊ Subwoofer: 12.5 inch(es) / 317.5 mm

Width : Receiver: 6.3 inch(es) / 160 mm ◊ Each Front/Height Speaker: 18.39 inch(es) / 467 mm ◊ Center Speaker: 4.53 inch(es) / 115 mm ◊ Each Surround Speaker: 9.06 inch(es) / 230 mm ◊ Subwoofer: 18.23 inch(es) / 463 mm

Height : Receiver: 12.9 inch(es) / 328 mm ◊ Each Front/Height Speaker: 7.21 inch(es) / 183 mm ◊ Center Speaker: 4.76 inch(es) / 121 mm ◊ Each Surround Speaker: 3.78 inch(es) / 96 mm ◊ Subwoofer: 15.67 inch(es) / 398 mm

Weight : ◊ Receiver: 18.1 lb(s) / 8.2 kg ◊ Each Front/Height Speaker: 7.9 lb(s) / 3.6 kg ◊ Center Speaker: 4.9 lb(s) / 2.2 kg ◊ Each Surround Speaker: 2.2 lb(s) / 1 kg ◊ Subwoofer: 21.2 lb(s) / 9.6 kg

GENERAL

Power Consumption : Receiver, Active: 490 W ◊ HDMI CEC Standby: 0.1 W ◊ Receiver, On, No Sound: 43.2 W ◊ HDMI Standby Through: 27.4 W ◊ Subwoofer: 35 W

Power Requirements : 120 VAC, 60 Hz

PACKAGING DIMENSIONS

Length : 33.25 inch(es) / 844.55 mm

Width : 29.88 inch(es) / 758.95 mm

Height : 20.25 inch(es) / 514.35 mm

Weight : 77.35 lb(s) / 35.09 kg

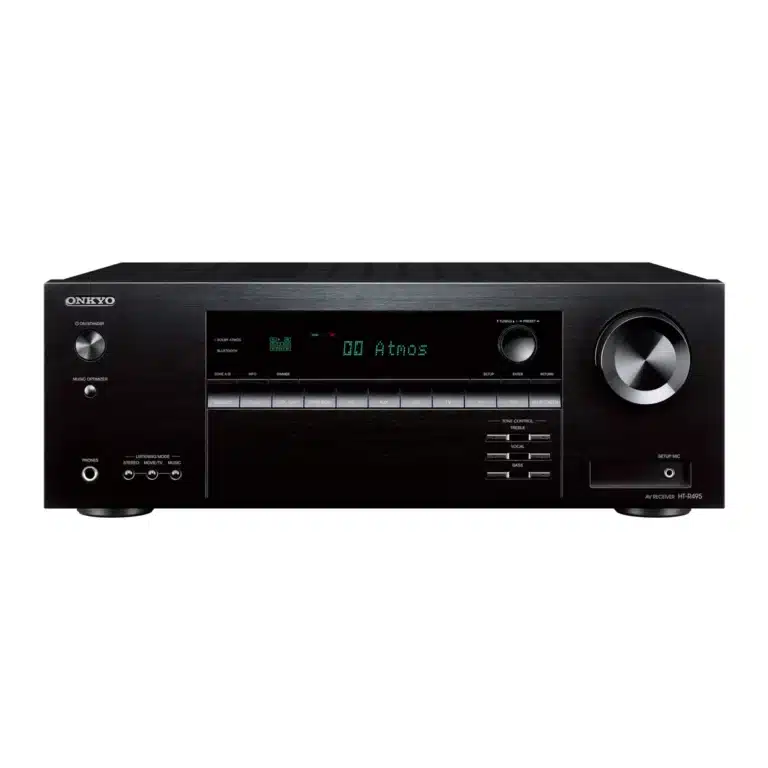

RECEIVER

Channel(s) : 5.1.2

Power Output : 80 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD

THD + N : 0.08% (20 Hz to 20 kHz, Half Power)

Input Sensitivity / Input Impedance : 200 mV / 47 Kilohms (RCA)

Tone Control : ±10 dB, 20 Hz (Bass) ◊ ±10 dB, 20 kHz (Treble)

Signal to noise ratio : 109 dB (IHF-A, Line In, Speaker Out)

Speaker Impedance : 4 to 16 Ohms

Headphone Output : 80 mW per Channel (32 Ohms, 1 kHz, 10% THD)

Headphone impedance : 8 to 600 Ohms

Frequency Response : Headphone Output : 10 Hz to 100 kHz

SPEAKERS

Type : Front, Center: Full-Range Bass Reflex, Passive Height, ◊ Surround: Full-Range Sealed, Passive ◊ Subwoofer: Bass Reflex, Powered

Drivers : Front: 1x 5" / 12 cm Cone Woofer, 1x 1" / 2.5 cm Balanced Dome Tweeter Each ◊ Center: 2x 3.25" / 8 cm Cone Woofers, 1x 1" / 25 mm Balanced Dome Tweeter ◊ Surround: 1x 3.25" / 80 mm Cone Each ◊ Height: 1x 3.25" / 80 mm Cone Each ◊ Subwoofer: 1x 10" / 250 mm Cone

Frequency Response : Front: 55 Hz to 50 kHz ◊ Center: 65 Hz to 50 kHz ◊ Surround, Height: 80 Hz to 20 kHz ◊ Subwoofer: 25 to 150 Hz

Sound Pressure Level (SPL) : Front: 83 dB/W/m ◊ Center: 86 dB/W/m ◊ Surround: 81 dB/W/m ◊ Height: 82.5 dB/W/m ◊ Subwoofer: -

Power Output : Maximum Input Power : 130 W ◊ Subwoofer ≤ 120 W

Nominal impedance : 6 Ohms

TUNER

Tuning Frequency Range : FM: 87.5 MHz to 107.9 MHz ◊ AM: 530 kHz to 1710 kHz

FM/AM Tuner : Preset Memory : 40 Stations

Sensitivity : 50dB Quieting : Mono FM: 1 μV, 11.2 dBf (IHF, 1 kHz, 100% MOD)

UPC

UPC : 889951002901
